NaviTech™ Electronic Power Steering Helm

Now you can get the same technology used to drive the most powerful and best handling cars for your boat.
Taking the latest technology from the automotive industry, Ultraflex has combined Electronic Power Steering (EPS) used in the most popular cars in the world with the latest mechanical steering helms and Mach 90 high efficiency steering cable to deliver unprecedented performance.

Perfectly silent, the system draws minimal power and furtheremore is very easy to install.
The NaviTechTM also has Integrated System Monitoring (ISM) which detects certain operating conditions including the number of cycles and notifies the end user with a vibration signal in the steering wheel if the cable needs to be changed. Never before has a steering system monitored it’s own operating conditions and given the driver diagnostic feedback.

FEATURES AND TECHNICAL SPECIFICATIONS:
Automotive steering effort and response
100% Balanced steering - Port to Starboard / Starboard to Port
Silent Operation
Monitoring software with integrated cycle counter, for a correct cable replacement.
By haptic feedback on the wheel, the system is able to signal anomalies, such as:
- Excessive cable load
- Stuck cable alarm
Field tested for over 3 years
16 Nm of assist torque capability
Able to tune on center and end of travel torque effort
Consistent steering assist through all vessel speed ranges
Applied in leading automotive application since 2011. Nowadays automotive production is over 1 million units per year
10 - 15 Vdc
8 - 15 A nominal current during steering maneuvers
Supplied with 10 ft electrical harness. It needs a 40 A fuse (to be ordered separately).
Validation for Marine application is per CE, ABYC P17, P27, and ISO 25197
NMMA Type Acceptance Completed



A Complete Steering System Consist Of Items Sold Seperate:
Power assisted steering helm: T91NAV - 43207 S - single cable steering helm
M90XXX Series Steering Cable
Tilt mechanism: X66 - 40613 M - Tilt mechanism for NaviTechTM tilt mount helms.
Tilt range of 48° and five locking positions
Steering cable: M90 Nav (patented)
ATTENTION: M90 Nav steering cable is suitable for use also with T71FC, T72FC, T73NRFC, T81FC, T82FC, T83NRFC, T91, T93ZT, T101, T103ZT. Ultraflex steering helms. M66 will not fit the following Uflex helms: T91, T93ZT, T101, T103ZT.

LIMIT OF APPLICATIONS
Outboard engines: Up to 150 hp, maximum 50 mph, no jackplates

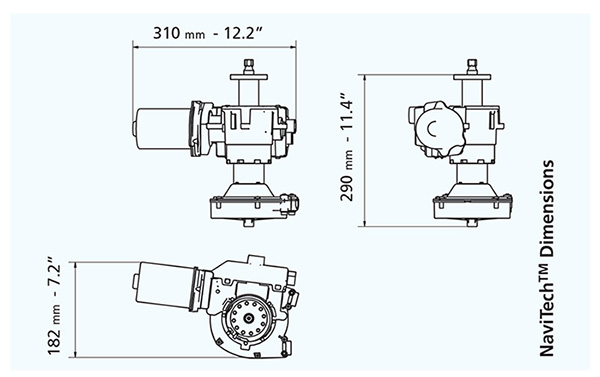

Navitech™ Electronic Steering Helm

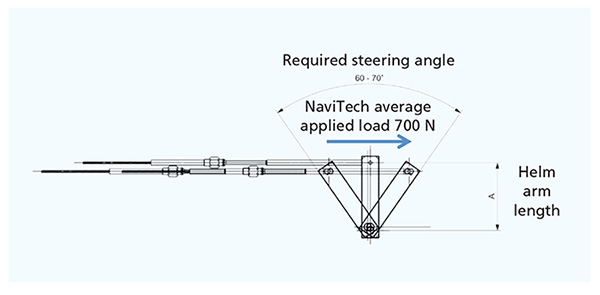

Application Navitech™
