Outboard Hydraulic Steering Cylinders

Outboard hydraulic steering cylinders are offered in several different versions. From lightweight operation to heavy duty operation there is a cylinder for every outboard application on the market today. Due to the popularity of the Outboard and with all of the new technology they offer in 2-stroke and 4-stroke applications.

Below is a list of of Hydraulic Outboard front mount hydraulic outboard cylinders that Uflex Usa offers.

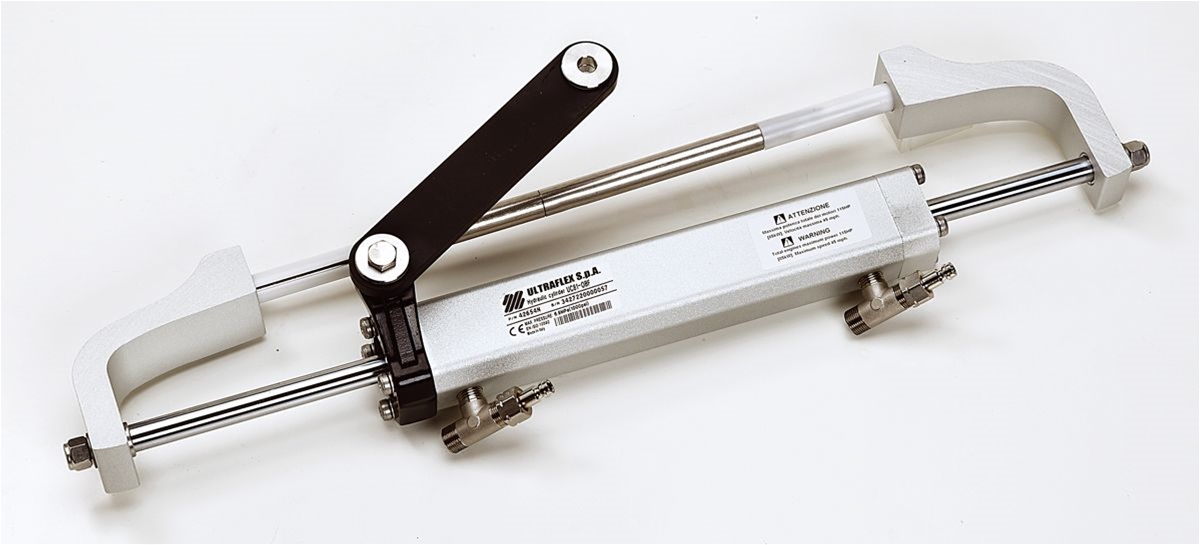

Starting with the UC81-OBF  Balanced: the number of turns lock-to-lock is equal port to starboard and vice-versa. Depending on the applications on the outboard engine, the UC81-OBF can be installed port or starboard.This cylinder is used on outboards up to 115 hp and is made to be used with the Gotech hydraulic packaged steering systems only. It comes in one version and is balanced the number of turns lock to lock port to starboard.

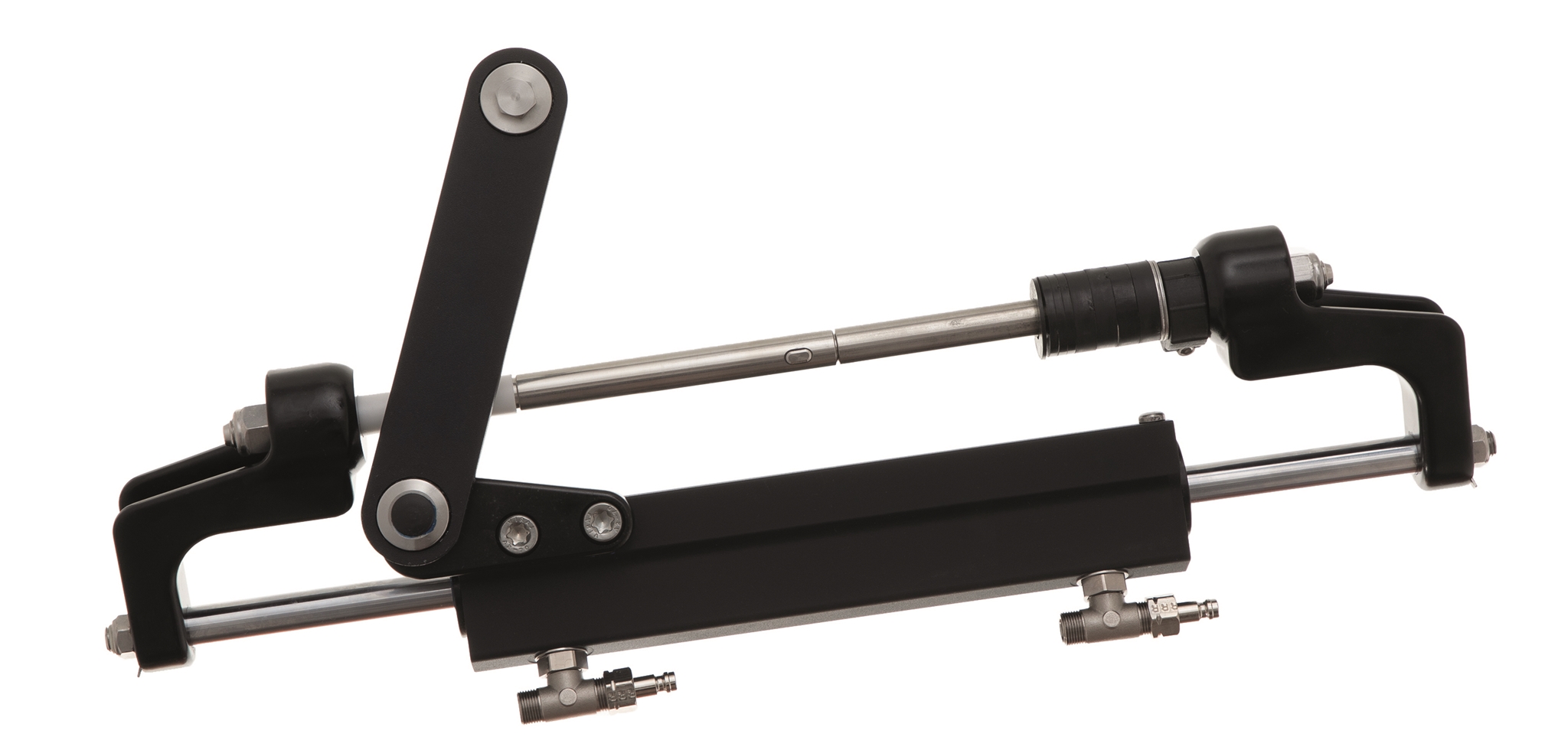

Then comes the UC95 OBF series with the adjustable boss style fittings for easy installation and is standard in the Hyco and Hytech packaged hydraulic boat steering systems. With a high resistance stainless steel connection bolt (Ultrabolt) Intended for single engine applications of 175 HP and under, the UC95 OBF cylinder is compatible with competing helms, hoses and oil, and is built to last with heavy duty stainless steel cylinder rod, seals and link assemblies.Constructed of top grade materials this cylinder is simple to install and fits almost every two and four stroke outboard engine in the market. See the application guide next page to ensure compatibility with your engine. The UC94 is recommended for use with the UP20 series helm and pre-made hose kits (Kit OB and Kit OB-BHBR). Innovative Design (PATENTED): Split and pinned mounting rod for easy installation and bushings to prevent friction with engine tilt tube. Depending on the applications on the outboard engines, the UC95-OBF cylinder is available in 2 versions.

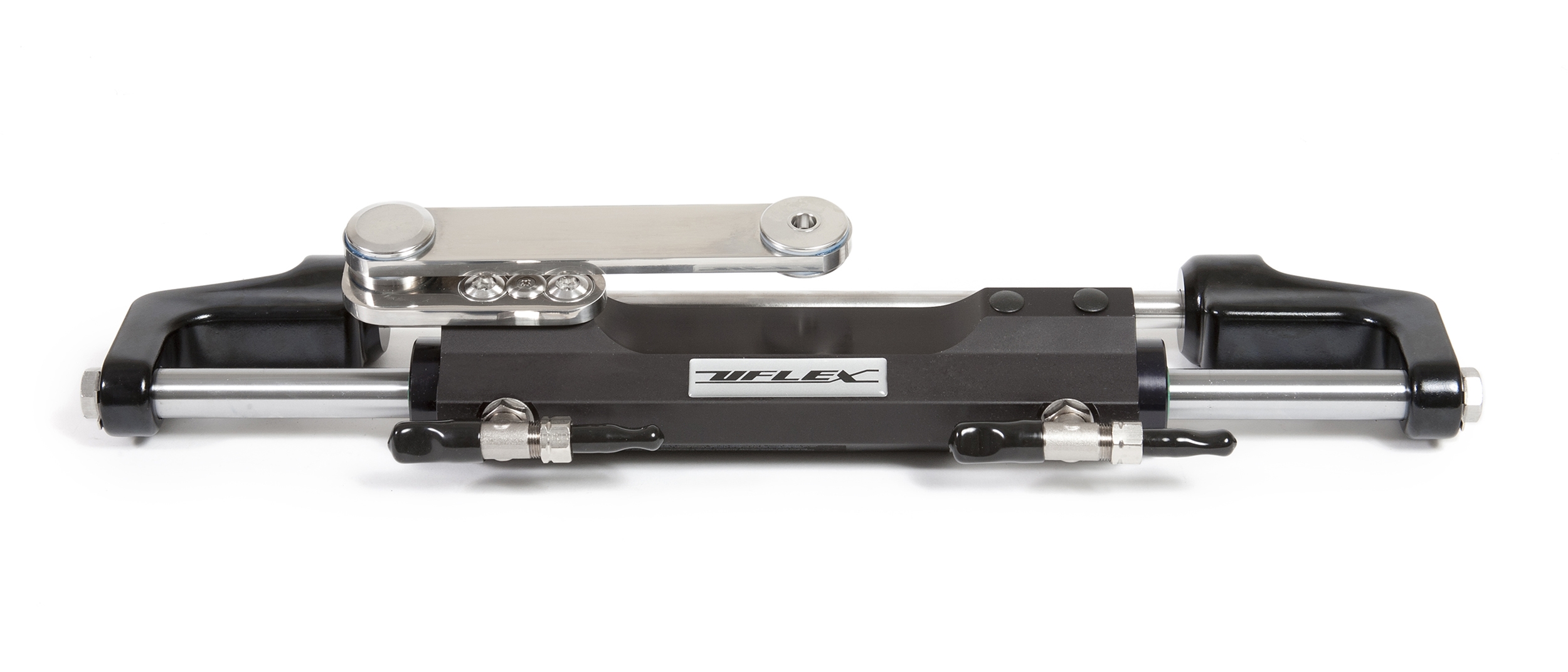

The robust UC128 OBF Series offered in standard and high performance applications ranging from 150 HP up to 300 HP engines and is standard with the Protech hydraulic packaged boat steering system. Whatever size of outboard you have there is a hydraulic steering cylinder  for your engine. The UC128 cylinder is built to last with heavy duty stainless steel cylinder rod, seals and link assemblies. Constructed of top grade materials, this cylinder is simple to install and fits almost every 2 and 4 stroke outboard engine in the market. See the application guide next page to choose the appropriate cylinder (UC128-OBF/1, UC128-OBF/2 or UC128-OBF/3) for your application. The UC128 cylinders are recommended for use with UP25, UP28, UP33 and UP39 series helms and pre-assembled hoses (Kit OB and Kit OB/R5). Depending on the applications on the outboard engines, the UC128-OBF is available in 3 versions.

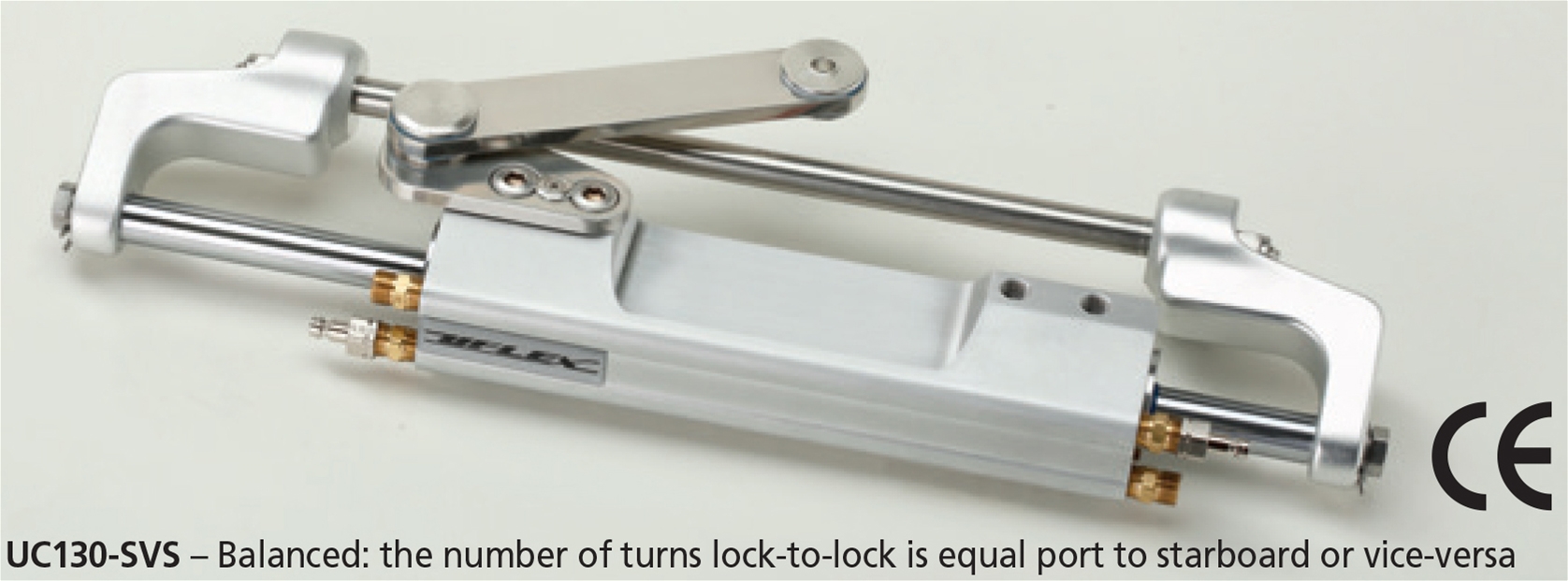

Finally the UC130 SVS High Performance cylinder is specially designed for high performance, high torque applications for the Silversteer™ hydraulic packaged steering system. The UC130-SVS cylinder is recommended for bass boats, flat boats and tournament fishing boats.The UC130-SVS is built to last with heavy duty stainless steel cylinder rod, seals and link assemblies. Constructed of top grade materials this cylinder is simple to install and fits almost every 2 and 4 stroke outboard engine in the market. See the application guide to choose the appropriate cylinder (UC130-SVS/1, UC130-SVS/2 or UC130-SVS/3) for your application. Depending on the applications on the outboard engines, the UC130-SVS is available in 3 versions.
