Rotech Mechanical Boat Steering System

The competitively priced complete system from Uflex is called the Rotech. The Planetary Gear Design of the Rotech contrasts conventional systems which have only one contact point between two drive gears. The single contact point of conventional systems receives all the torque from the engine, which can eventually lead to uneven gear wear and correspondent lost motion in the steering. The Rotech includes helm, bezel and cable. It is a direct replacement for competing rotary systems requiring no new holes in the dash. Featuring the T71FC helm with a Planetary Gear Design, the Rotech reduces steering effort and delivers more balanced loads on the steering wheel. This unique design also offers a wider wear area which reduces lost motion and improves durability. Centered on the main drive shaft, this helm requires less room behind the dash and is a direct “drop in” replacement for competing system; requiring no new holes for installation. The Rotech package also includes the M66 Universal Rotary Steering Cable with stainless steel output fittings for maximum longevity and smooth steering.

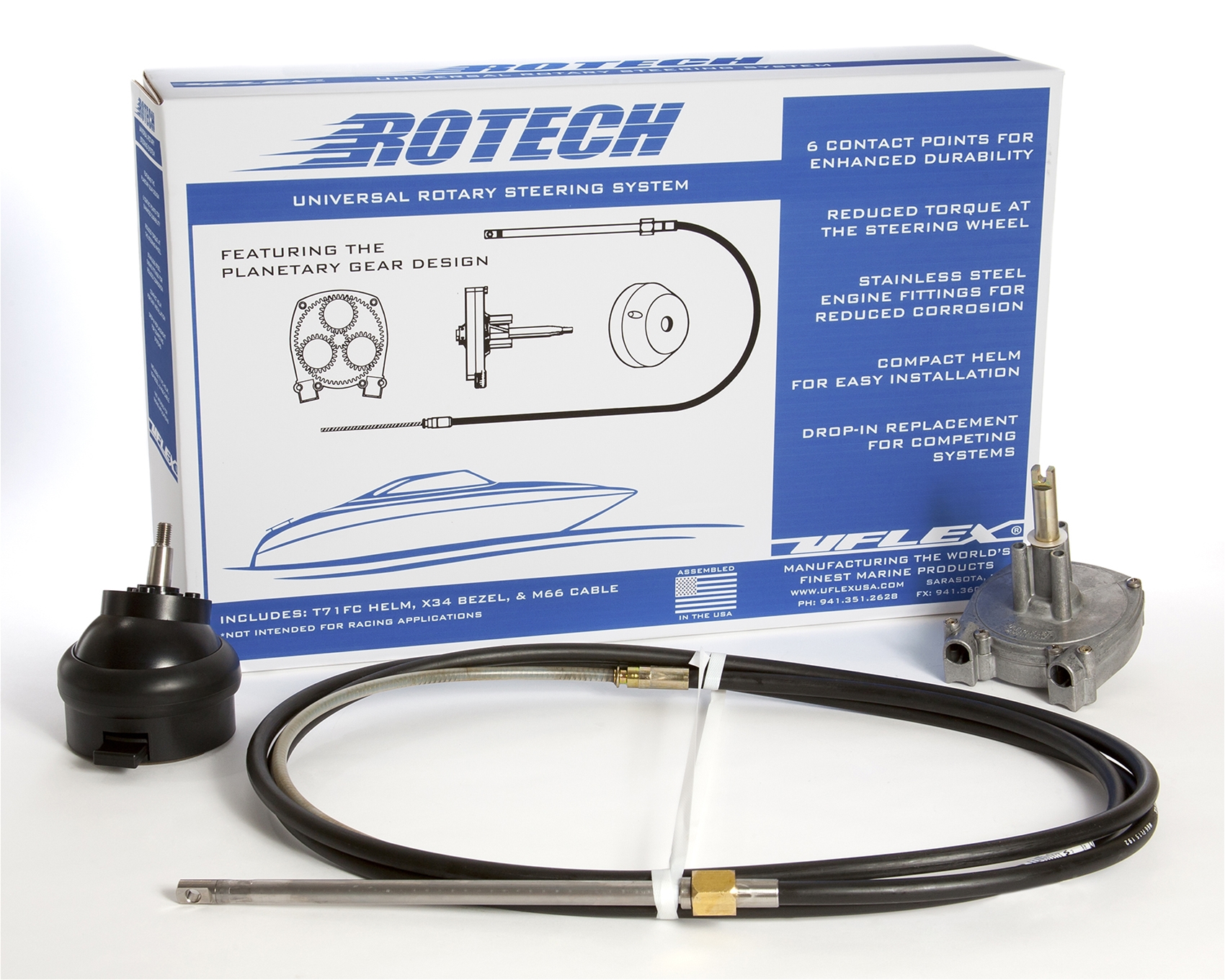

Standard Rotech Boat Steering Package

A COMPLETE STEERING SYSTEM CONSISTS OF
Steering helm: T71FC - 38867 H - single cable steering helm, Mounting bezel: X34 - 36654 B - black, 90° mounting X34W - 40654 C - white, 90° mounting X35 - 36655 C - black, 20° mounting Steering cable: M66 Optional steering wheel not included. Use your current or choose from one from our Boat Steering Wheels.

FEATURES AND TECHNICAL SPECIFICATIONS
Fast connect, simple installation. All stainless steel cable output ends. Corrosion resistant materials. Particularly suitable where clearance is limited. Optional 90° or 20° installation Bezel Kit. Standard 3/4” tapered shaft on helm. Lock-to-lock steering wheel turns: approx. 3.8. Stroke: 9” (228 mm). Maximum allowable steering wheel diameter: 16” (406 mm). Minimum steering cable bend radius:7.9” (200 mm). Minimal feedback. Compact for mounting. T71FC Helms steering systems are not to be used on boats equipped with engines that exceed the maximum horsepower rating of the boat. For boats faster than 50 mph see our hydraulic boat steering packages are recommended Exceeds EN 28848 safety standards Exceeds ABYC P17 safety standards.

Rotech Boat Steering Package With Tilt Helm

A COMPLETE STEERING SYSTEMS CONSIST OF
Steering helm: T81FC - 38957 J single cable steering helm Tilt mechanism: X52 - 39250 U NOTE: X52 tilt mechanism fits Uflex tilt mount rotary and rack and pinion steering helms as well as Ultraflex tilt mount hydraulic pumps except SilverSteer™ and MasterDrive™ steering systems Steering cable: M66 Optional steering wheel Use your current or choose from one from our Boat Steering Wheels. Engine connection kits (see index)

FEATURES AND TECHNICAL SPECIFICATIONS
Tilt range of 48° and five locking positions Fast connect, simple installation Tilt device eliminates under dash movement Standard 3/4” tapered shaft - stainless steel All stainless steel cable output ends Corrosion resistant materials Lock-to-lock steering wheel turns: approx. 3.8 Stroke: 9” (228 mm) Maximum allowable steering wheel diameter: 16” (406 mm) Minimum steering cable bend radius: 7.9” (200 mm) T81FC, T82FC and T83NRFC steering systems are not to be used on boats equipped with engines that exceed the maximum horsepower rating of the boat For boats faster than 50 mph our hydraulic steering systems are recommended Exceeds EN 28848 safety standards Exceeds ABYC P17 safety standards
