Rotech II Dual Cable Boat Steering System
The competitively priced complete system from Uflex is called the Rotech-II™. The Planetary Gear Design of the Rotech-II™ contrasts conventional systems which have only one contact point between two drive gears. The single contact point of conventional systems receives all the torque from the engine, which can eventually lead to uneven gear wear and correspondent lost motion in the steering. The Rotech-II™ includes helm, bezel and cable. It is a direct replacement for competing rotary systems requiring no new holes in the dash.
Featuring the T72FC helm with a Planetary Gear Design, the Rotech-II™ reduces steering effort and delivers more balanced loads on the steering wheel. This unique design also offers a wider wear area which reduces lost motion and improves durability. Centered on the main drive shaft, this helm requires less room behind the dash and is a direct “drop in” replacement for competing system; requiring no new holes for installation. The Rotech-II™ package also includes the M66 Universal Rotary Steering Cable with stainless steel output fittings for maximum longevity and smooth steering.

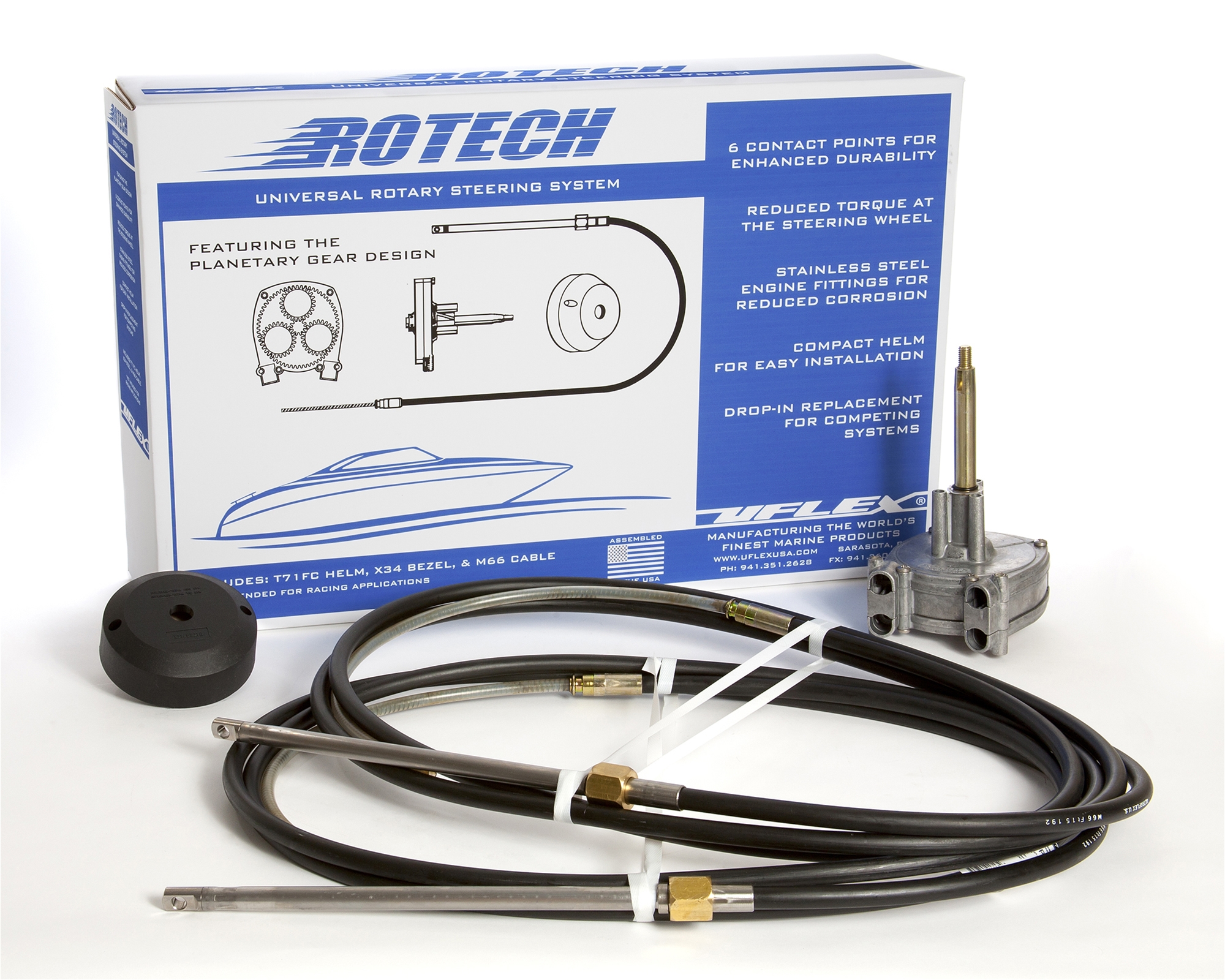

Rotech-II™ Dual Cable Boat Steering System
A COMPLETE STEERING SYSTEM CONSISTS OF:
Steering helm: T72FC - 38868 K - dual cable steering helm Mounting bezel:
X34 - 36654 B - black, 90° mounting
X34W - 40654 C - white, 90° mounting
X35 - 36655 C - black, 20° mounting
Steering cable: Two M66 Steering Cables
FEATURES AND TECHNICAL SPECIFICATIONS
Fast connect, simple installation. All stainless steel cable output ends. Corrosion resistant materials. Particularly suitable where clearance is limited. Optional 90° or 20° installation. Standard 3/4” tapered shaft
Lock-to-lock steering wheel turns: approx. 3.8 Stroke: 9” (228 mm) Maximum allowable steering wheel diameter: 16” (406 mm) Minimum steering cable bend radius: 7.9” (200 mm) Minimal feedback Compact for mounting under dash. T72FC steering systems are not to be used on boats equipped with engines that exceed the maximum horsepower rating of the boat For boats faster than 50 mph our hydraulic steering systems are recommended.

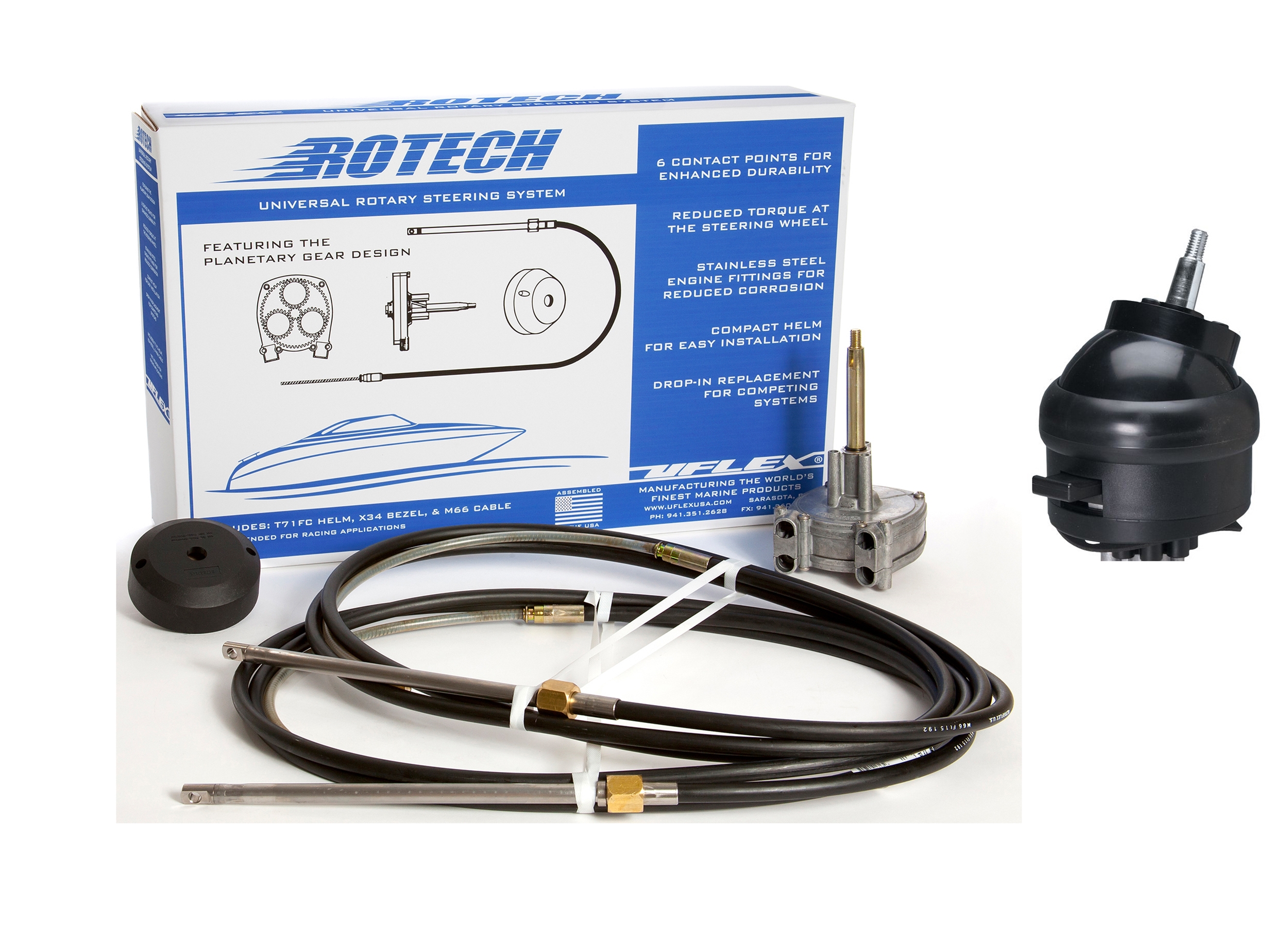

Rotech-II™ Dual Cable Boat Steering System Tilt Helm
A COMPLETE STEERING SYSTEM CONSISTS OF:
Steering helm: T82FC - 38958 L dual cable steering helm
Tilt mechanism: X52 - 39250 U
NOTE: X52 tilt mechanism fits Uflex tilt mount rotary and rack and pinion steering helms only.
FEATURES AND TECHNICAL SPECIFICATIONS
Tilt range of 48° and five locking positions. Fast connect, simple installation. Tilt device eliminates under dash movement. Standard 3/4” tapered shaft - stainless steel. All stainless steel cable output ends
Corrosion resistant materials. Lock-to-lock steering wheel turns: approx. 3.8 Stroke: 9” (228 mm) Maximum allowable steering wheel diameter: 16” (406 mm). Minimum steering cable bend radius:
7.9” (200 mm) T82FC steering systems are not to be used on boats equipped with engines that exceed the maximum horsepower rating of the boat For boats faster than 50 mph our hydraulic steering systems are recommended.
