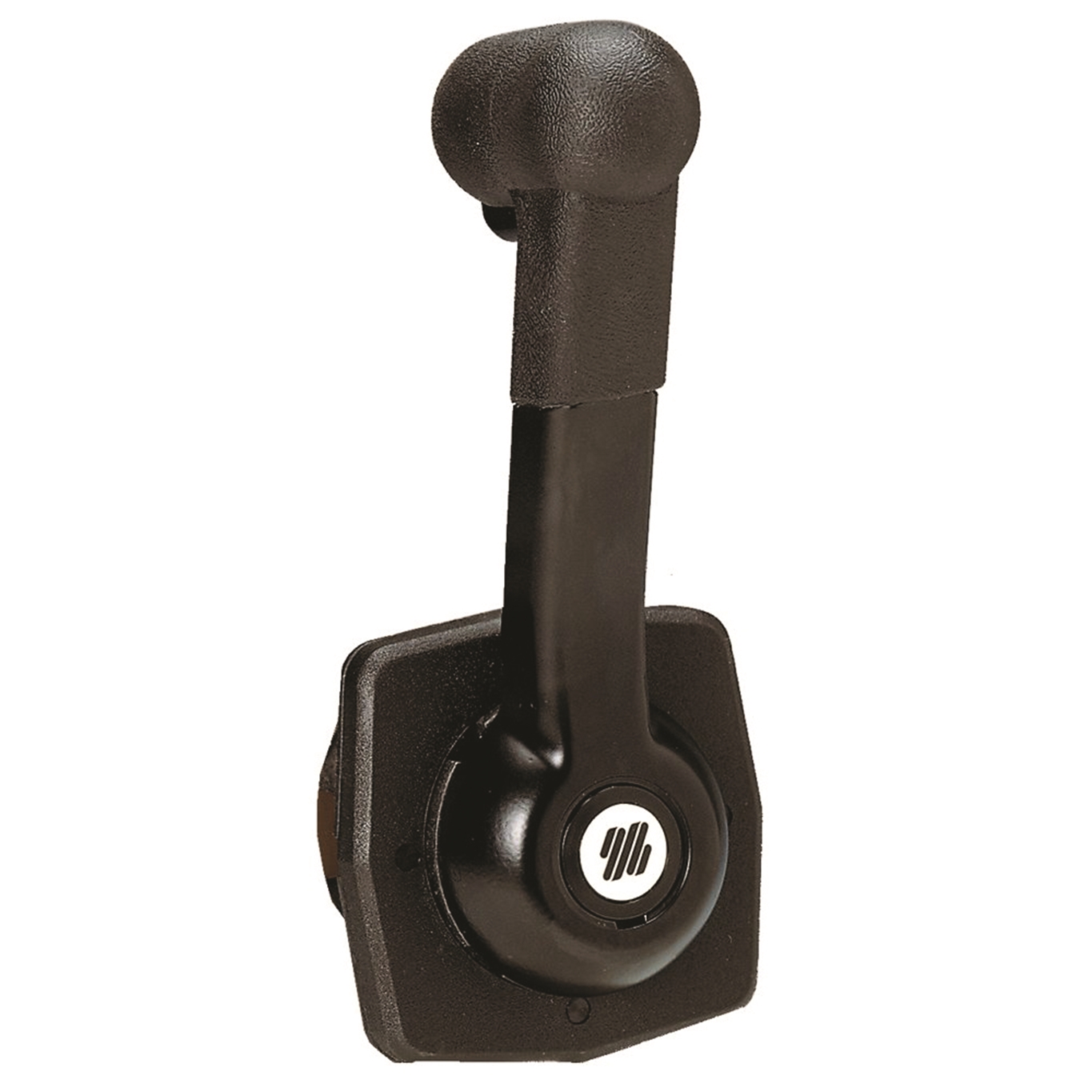

B183 38945 B Single Lever Side Mount Control With Out Trim
The B183 Flush side mount installation is the B184 without power Trim. Particularly suitable for dual-action control to operate both throttle and shift. Suitable for any type of boats with outboard, Inboard or I/O power plants. Features: Enables easy and safe shifting by preventing accidental gear engagement unless engine is idling. Can be installed horizontally or vertically, on the starboard or port side of the boat. This assembly is made of painted marine aluminum. Pull out handle disengages shift for warm up. Neutral safety switch prevents in gear starting. All models are provided with positive lock-in neutral to prevent accidental gear engagement. For use with Ultraflex engine control cables except C22 or C4. Ultraflex C5 and C16 cables require K35 - 34730 U connection Kit.
B183 38945 B Single Lever Side Mount Control With Out Trim
Single lever / dual action control to operate both throttle and shift. Suitable for any type of boats with outboard, inboard or I/O power plants. Features: Enables easy and safe shifting by preventing accidental gear engagement unless engine is idling Can be installed horizontally or vertically, on the starboard or port side of the boat Provided with a brake tension release system adjustable from outside Pull-out handle disengages shift for warm-up Includes X12 neutral safety switch which prevents in-gear starting
Exceeds EN ISO 11547 standards when X12 safety switch is installed All models are provided with positive lock in neutral to prevent accidental gear engagement B184 and B184CB models are provided with a power trim switch conveniently located in the handle grip that enables an easy tilting of the engine For use with:
- All Ultraflex control cables except C4, C36 and MACH36 Mercury®\ current BRP® (OMC®) \ Yamaha® \
Suzuki® Honda® \ Volvo® style cables 33C style cables Ultraflex C5, C16, MACH5 and Mercury®
cables require K35 - 34730 U connection kit Ultraflex C22 and C23 cables require KB1 - 39964 L Connection kit.
