MasterDrive™ MD40FM Single Station Twin Cylinders Retrofit Kit
Eliminates torque at the steering wheel Three different select-able levels of power give the boater the desired feeling on the wheel (PATENTED). Automatically reverts to manual mode in case of power loss. High efficiency, low Amp draw The system always running permits immediate control in any sea conditions. Equipped with safety switch ON/OFF (SMART BUTTON). Suitable for use with autopilot Low noise Voltage: 12VDC CE marked in conformity with ABYC P21, ISO 10592 safety standards Ignition protected (SAE J-1171 and UNI EN 28846)
MasterDrive™ MD40FM Single Station Twin Cylinders Retrofit Kit

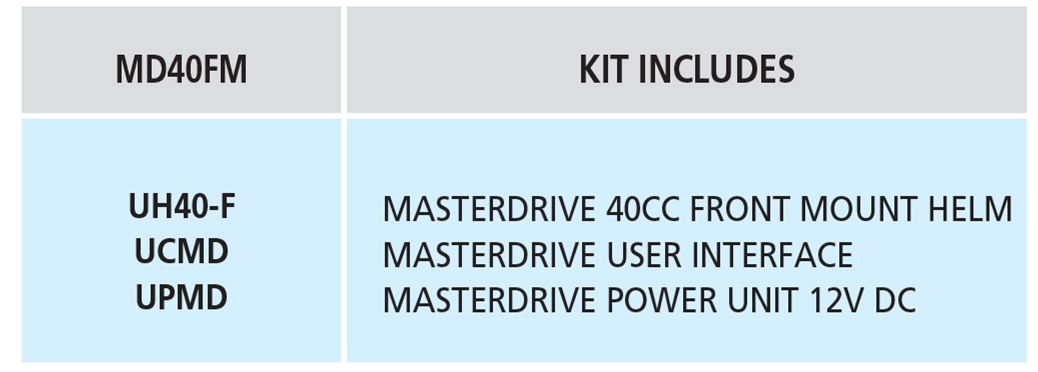

What's In The Box System Components 1 single packaged KIT MD40FM Dual Cylinder Retrofit Kit Only containing:
- 1 UH40-F Front Mount Master Helm
- 1 UPMD Power Unit, 15’ (4,5 m) wiring harness included
- 1 UCMD User Interface
- 2 OIL 15 bottles of hydraulic oil
This kit does not include Cylinders, Hose Kits and Steering wheel.
Optional Second Station Kit Not included with the above listed MD Kit
1 KIT MD2: for dual station
Flexible hydraulic hoses
1 Tilt mechanism X66-40613 M suitable for Tilt Mount Helm. Tilt range of 48° and five locking positions.
1 Dual cylinder application Tie Bar: See Selection (Outboard Application Only)
1 Steering Wheel: See Selection
1 Instruction manual
Note
The MasterDrive™ helms (both the UH Master and the UHD slave for a dual station), the UPMD Power Unit and the UCMD User Interface are the same products shown on the outboard MasterDrive™ system.
For more details please refer to the outboard MasterDrive™ section. See Ordering Guide below.
