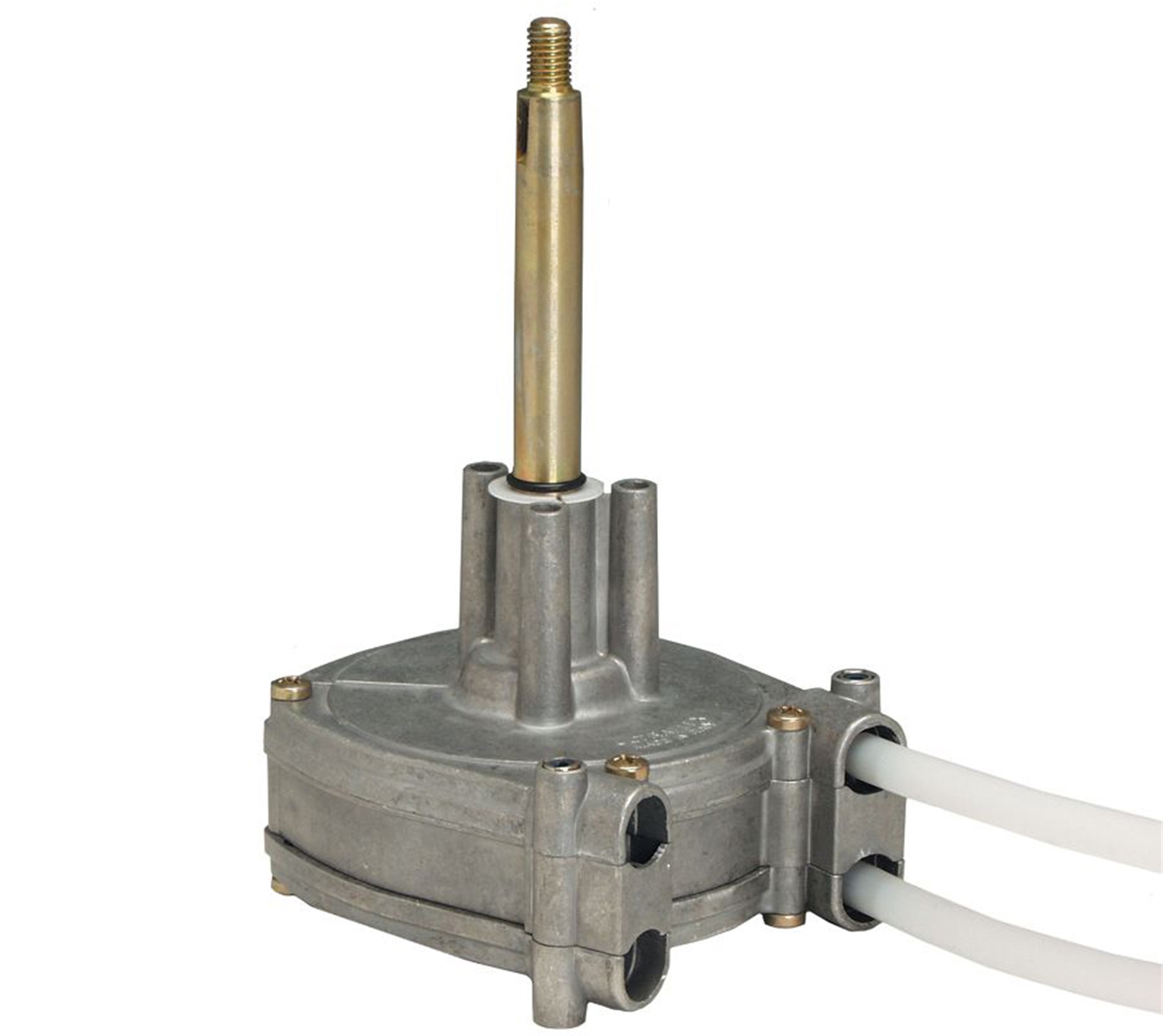

T72FC 38868 K Dual Cable Rotary Helm
T72FC is for Dual cable applications. One bezel kit and steering cable required for each helm. Bezel kits and cables sold separate. Fast connect, simple installation All stainless steel cable output ends Corrosion resistant materials Particulary suitable where clearance is limited
T72FC 38868 K Dual Cable Rotary Helm
Feature And Technical Specifications
Fast connect, simple installation All stainless steel cable output ends Corrosion resistant materials
Particulary suitable where clearance is limited Optional 90° or 20° installation Standard 3/4” tapered shaft
Lock-to-lock steering wheel turns: approx. 3.8 Stroke: 9” (228 mm) Maximum allowable steering wheel
diameter: 16” (406 mm) Minimum steering cable bend radius: 7.9” (200 mm) Minimal feedback
Compact for mounting T71FC Single Cable and T72FC Dual Cable steering systems are not
to be used on boats equipped with engines that exceed the maximum horsepower rating of the boat
For boats faster than 50 mph our hydraulic steering systems are recommended T71FC steering system is also available in package with Rotech, which includes the X35 bezel and M66 cable. Exceeds EN 28848 safety standards Exceeds ABYC P17 safety standards.
