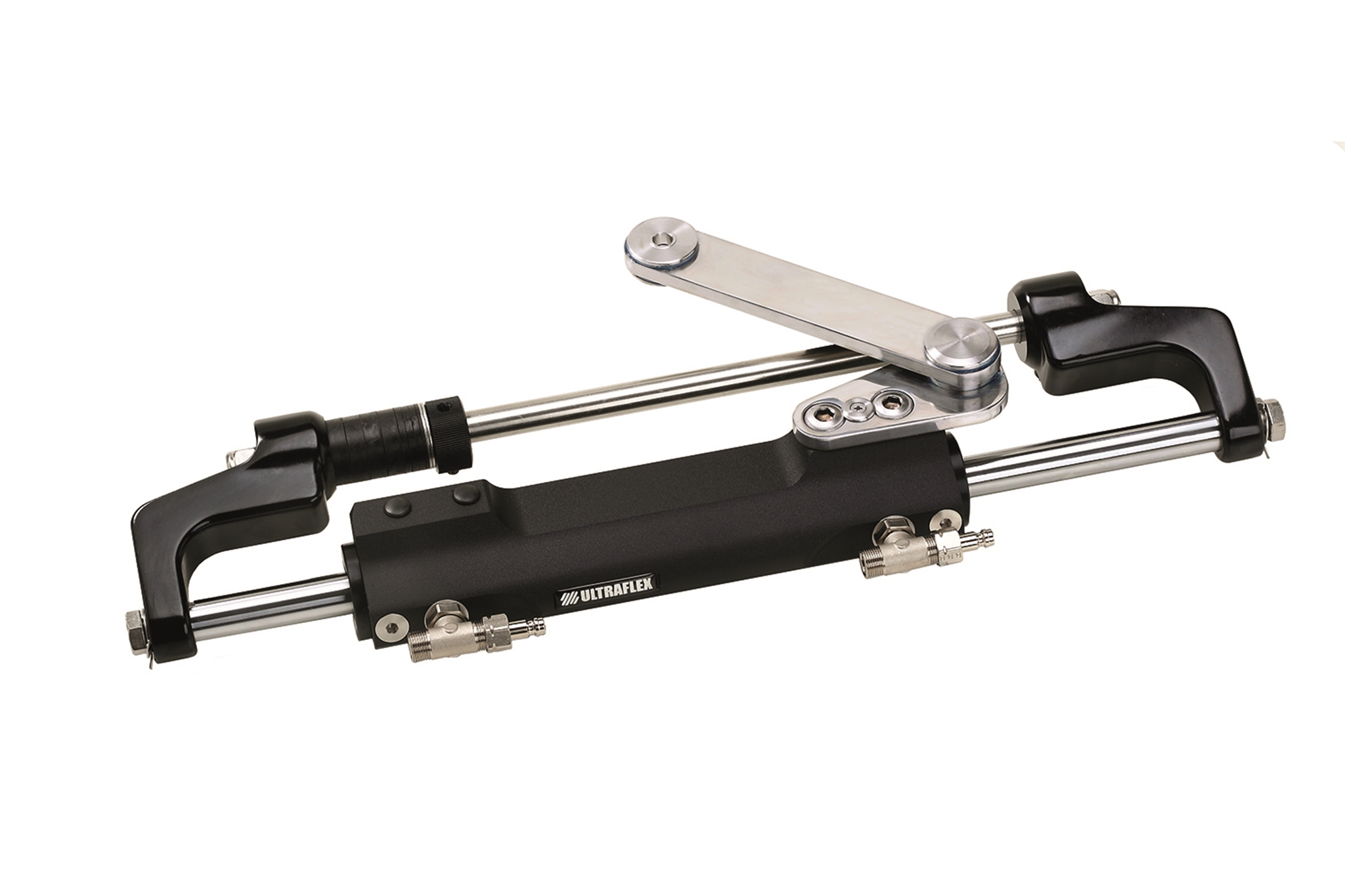

UC128TS-1P Front Mount Cylinder Port Instillation
In the applications with dual UC128TS cylinder's it is necessary to order a standard UC128TS-1 cylinder (link arm attached to the starboard side of the cylinder) and a port UC128TS-1P cylinder (link arm attached to the port side of the cylinder). See appropriate section for A90 tie bar required for use on dual engine/dual cylinder applications. Depending on the applications on the outboard engines, the UC128P-OBF port cylinder is available in 2 versions. See the application guide to choose the appropriate cylinder (UC128TS-1P, UC128TS-2P).
UC128TS-1P Front Mount Cylinder Port Instillation Duel Engine Dual Cylinder
UC128TS - Balanced: the number of turns lock-to-lock is equal port to starboard or vice-versa In the applications with dual UC128TS cylinder it is necessary to order a standard UC128TS cylinder (link arm attached to the starboard side of the cylinder) and a port UC128TS-P cylinder (link arm attached to the port side of the cylinder). See appropriate section for A90 tie bar required for use on dual engine/dual cylinder applications. Depending on the applications on the outboard engines, the UC128TS-P port cylinder is available in 2 versions:
Adjustable boss style fittings for easy and leak free installation High resistance stainless steel connection bolt (ULTRABOLT) Compatible with competing helms, hoses and oil, the UC128TS cylinder is built to last with heavy duty stainless steel cylinder rod, seals and link assemblies. Constructed of top grade materials this cylinder is simple to install and fits almost every two and four stroke outboard engine in the market.
See the application guide to choose the appropriate cylinder (UC128TS-1, UC128TS-2 or UC128TS-3) for your application. The UC128 cylinders are recommended for use with UP25, UP28, UP33 and UP39 series helms and pre-assembled hoses (Kit OB and Kit OB-BHBR).
Depending on the applications on the outboard engines, the UC128-OBF is available in 3 versions:
