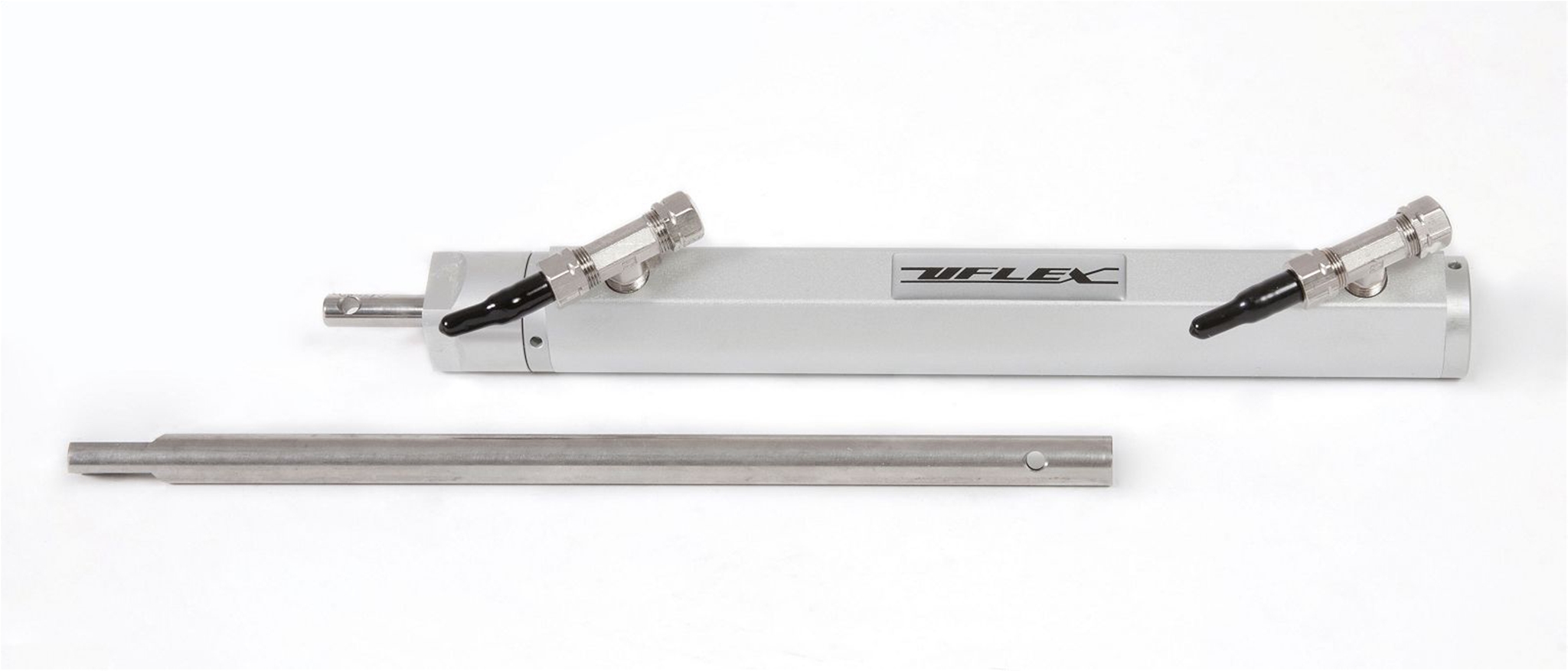

UC132OBS 39430 W Side Mount Application Cylinder
Unbalanced: the number of turns lock to lock is equal port to starboard or vice-versa. UC132-OBS side mount cylinder features a turning nut for fast and easy installation to the engine tube (patented).
Specifications:
- Volume: 132 / 163 cc - 8 / 9.95 cu. in.
- Output Force: 455 / 563 kg - 1003 / 1240 cu. in.
- Inside Diameter: 32 mm - 1.25"
- Stroke: 203 mm - 8"
- 3/8" (9,5 mm) Fittings: For high pressure flex hose
- Clearence required at the engine tube side: 13.4" (340 mm).
- WARNING: the UC132-OBS side mount cylinder is not recommended for use in installations where the boat speed exceeds 60 mph (60 knots) and the power exceeds max Coast Guard recommendation for the boat.
Note: Clearence required at the engine tube side: 375mm (14.76")
UC132OBS 39430 W Side Mount Application Cylinder
Unbalanced: the number of turns lock to lock is equal port to starboard or vice-versa. UC132-OBS side mount cylinder features a turning nut for fast and easy installation to the engine tube (patented).
Specifications: Volume: 132 / 163 cc - 8 / 9.95 cu. in. Output Force: 455 / 563 kg - 1003 / 1240 cu. in. Inside Diameter: 32 mm - 1.25" Stroke: 203 mm - 8" 3/8" (9,5 mm) Fittings: For high pressure flex hose Clearance required at the engine tube side: 13.4" (340 mm). WARNING: the UC132-OBS side mount cylinder is not recommended for use in installations where the boat speed exceeds 60 mph (60 knots) and the power exceeds max Coast Guard recommendation for the boat. Clearance required at the engine tube side: 375mm (14.76")
