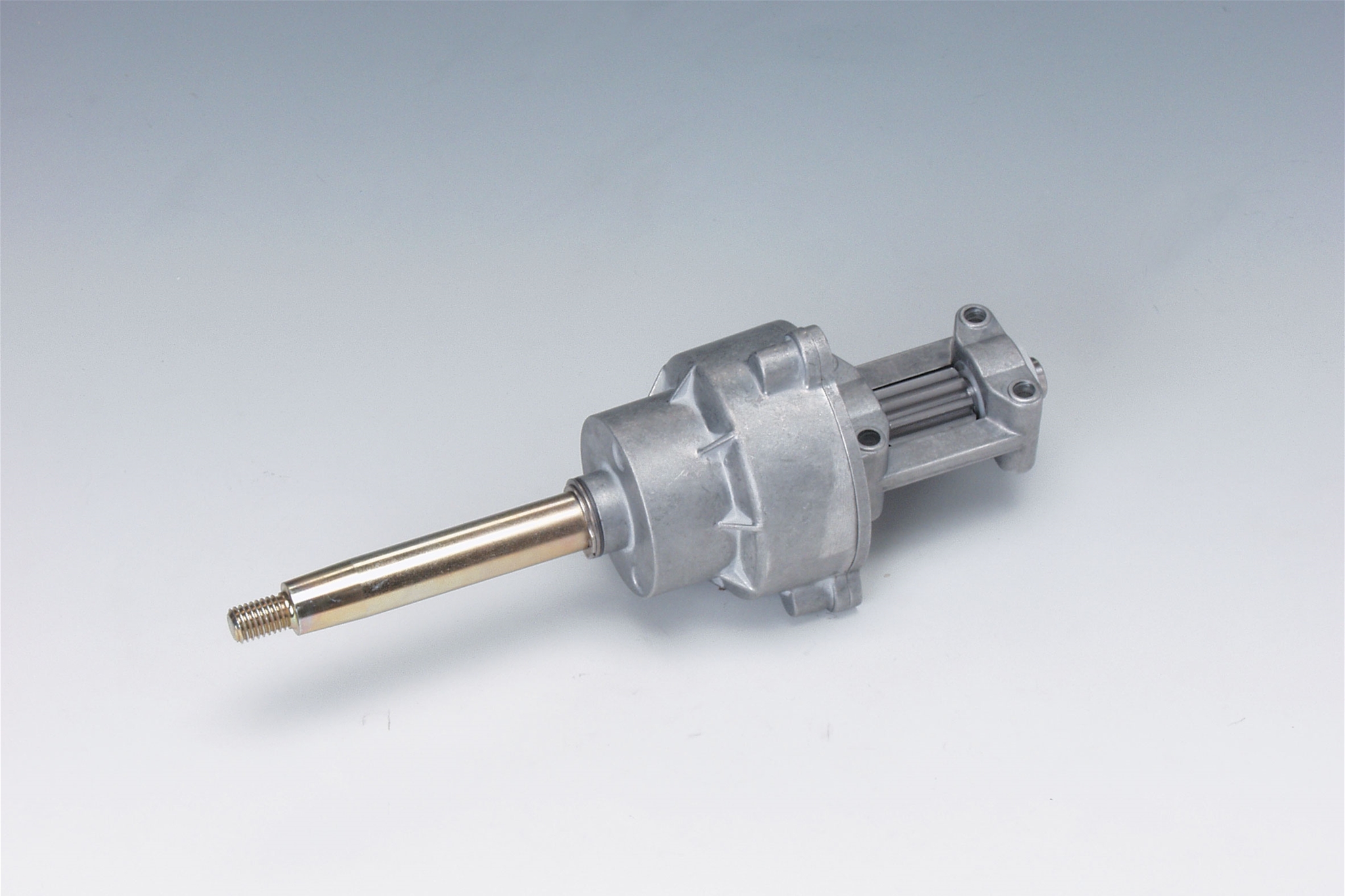

G86 - 39418 G standard Helm Rack And Pinion Steering Helm
Features And Technical Specifications
Easy and safe steering: patented anti-feedback G86 helm eliminates the continuous load on the operator caused by the propeller torque. All stainless steel cable output ends Made exclusively in corrosion resistant materials Optional 90° or 20° installation Standard 3/4”tapered shaft Lock-to-lock steering wheel turns: 3.5 Stroke: 8.2” (210 mm) Maximum allowable steering wheel diameter: 16.5” (420 mm) Minimum steering cable bend radius: 7.9” (200 mm) G86 and G88 NR steering systems are not to be used on boats equipped with engines that exceed the maximum horsepower rating of the boat Available in package includes X34 bezel and M86 cable with Racktech and Accutech Exceeds EN 28848 safety standards Exceeds ABYC P17 safety standards
G86 Rack And Pinion Steering Helm
Features And Technical Specifications
Easy and safe steering: patented anti-feedback G86 helm eliminates the continuous load on the operator caused by the propeller torque. All stainless steel cable output ends Made exclusively in corrosion resistant materials Optional 90° or 20° installation Standard 3/4”tapered shaft Lock-to-lock steering wheel turns: 3.5 Stroke: 8.2” (210 mm) Maximum allowable steering wheel diameter: 16.5” (420 mm) Minimum steering cable bend radius: 7.9” (200 mm) G86 and G88 NR steering systems are not to be used on boats equipped with engines that exceed the maximum horsepower rating of the boat Available in package includes X34 bezel and M66 cable with Racktech and Accutech Exceeds EN 28848 safety standards Exceeds ABYC P17 safety standards.
