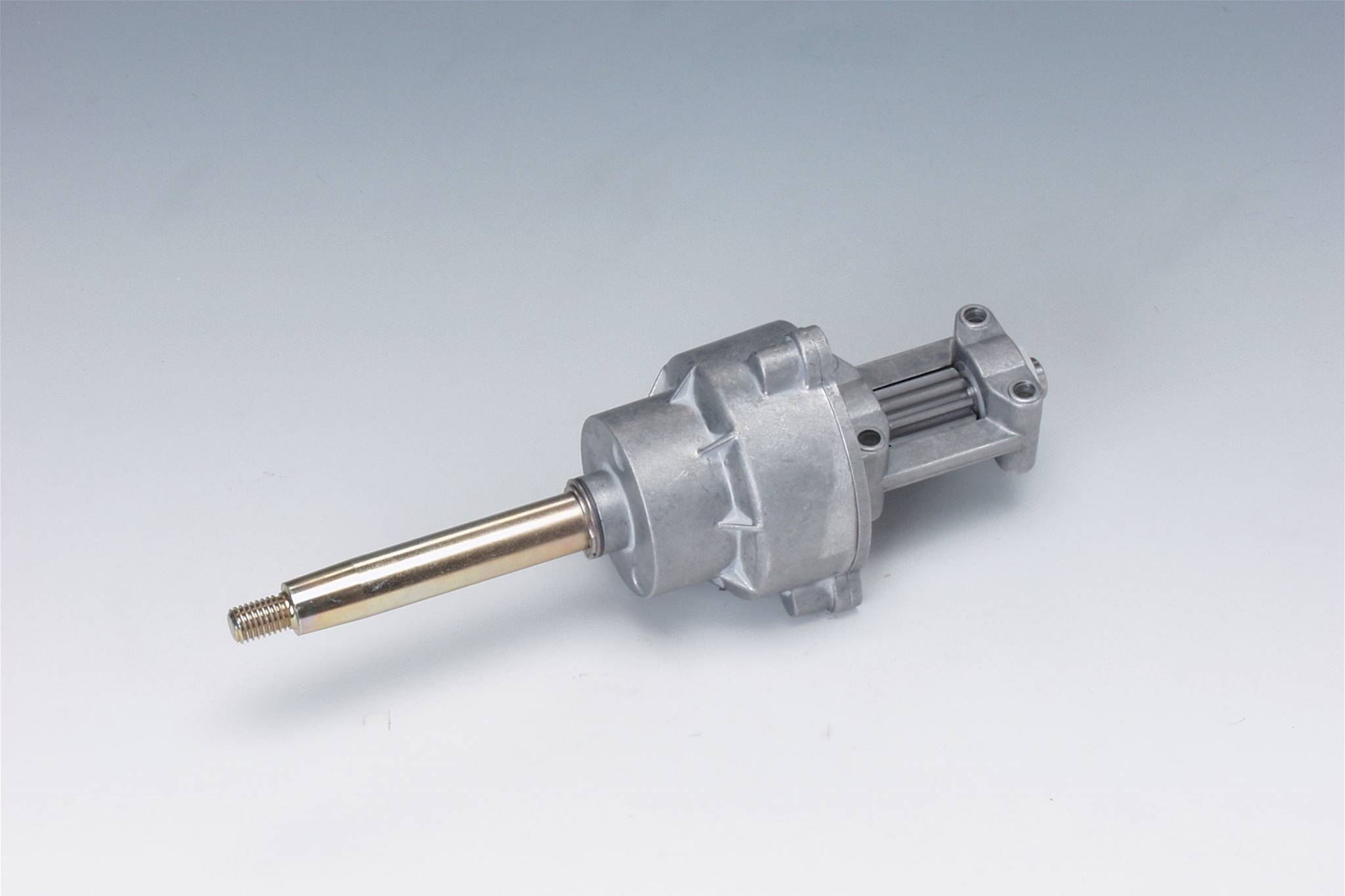

G88NR 39419 J (Anti-Feedback) Helm
The G86NR is a no feedback Racket Pinion helm which eliminates the continuous load on the operator caused by propeller torque. This helm is used with the M86 steering cable and comes standard in the Accutech complete steering package.
G88NR 39419 J (Anti-Feedback)
Features And Technical Specifications Easy and safe steering: patented anti-feedback G88NR helm eliminates the continuous load on the operator caused by the propeller torque All stainless steel cable output ends Made exclusively in corrosion resistant materials Optional 90° or 20° installation Standard 3/4”tapered shaft Lock-to-lock steering wheel turns: 3.5 Stroke: 8.2” (210 mm) Maximum allowable steering wheel diameter: 16.5” (420 mm) Minimum steering cable bend radius: 7.9” (200 mm) G86 and G88NR 39419 J steering systems are not to be used on boats equipped with engines that exceed the maximum horsepower rating of the boat Available in package includes X34 bezel and M86 cable with Racktech and Accutech Exceeds EN 28848 safety standards Exceeds ABYC P17 safety standards
