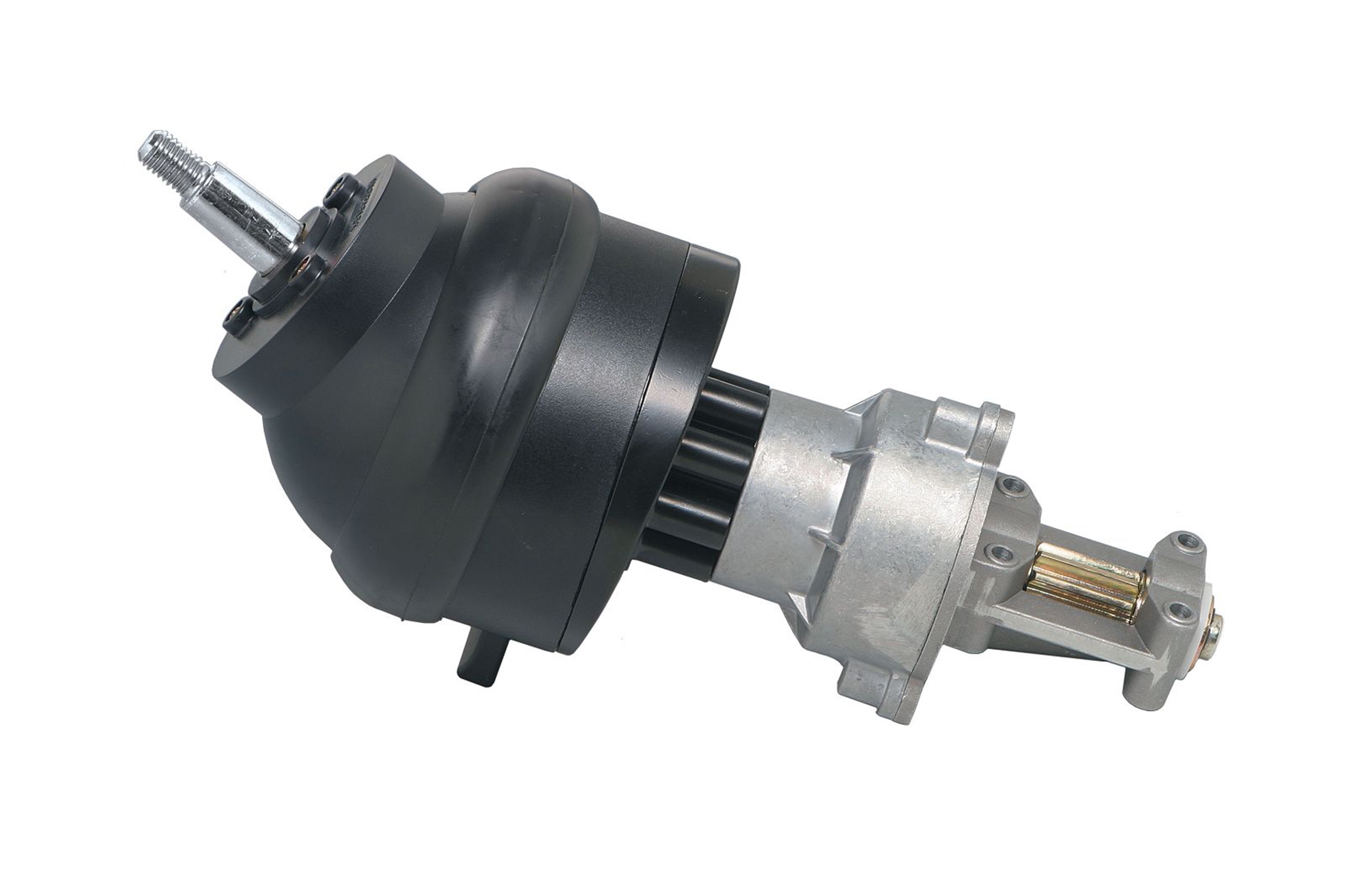

G98NR - 39649 C Tilt No Feedback Helm

G98 - 39649 C  With Tilt No Feedback Helm

 FEATURES AND TECHNICAL SPECIFICATIONS:

• Easy and safe steering: the patented non reversible G98NR helm eliminates the continuous load on the operator caused by the propeller torque

• Fast, simple installation

• Tilt range of 48° and five locking positions

• Tilt device eliminates under dash movement

• Standard 3/4” tapered shaft - stainless steel

• All stainless steel cable output ends

• Made exclusively in corrosion resistant materials

• Lock-to-lock steering wheel turns: 3,5

• Stroke: 210 mm (8.2”)

• Maximum allowable steering wheel diameter: 420 mm (16.5”)

• Minimum steering cable bend radius: 200 mm (7.9”)

• T96 and T98NR^® steering systems are not to be used on boats equipped with engines that exceed the maximum horsepower rating of the boat

• Exceeds EN 28848 safety standards

• Exceeds ABYC P17 safety standards

Tilt mechanism: X52 - 39250U sold separately.

NOTE: X52 tilt mechanism fits Ultraflex tilt mount rotary and rack and pinion steering helms as well as Ultraflex tilt mount hydraulic pumps except SilverSteer™ and MasterDrive™ steering systems

X52 Tilt Mechanism is not included and must be purchased separate.
