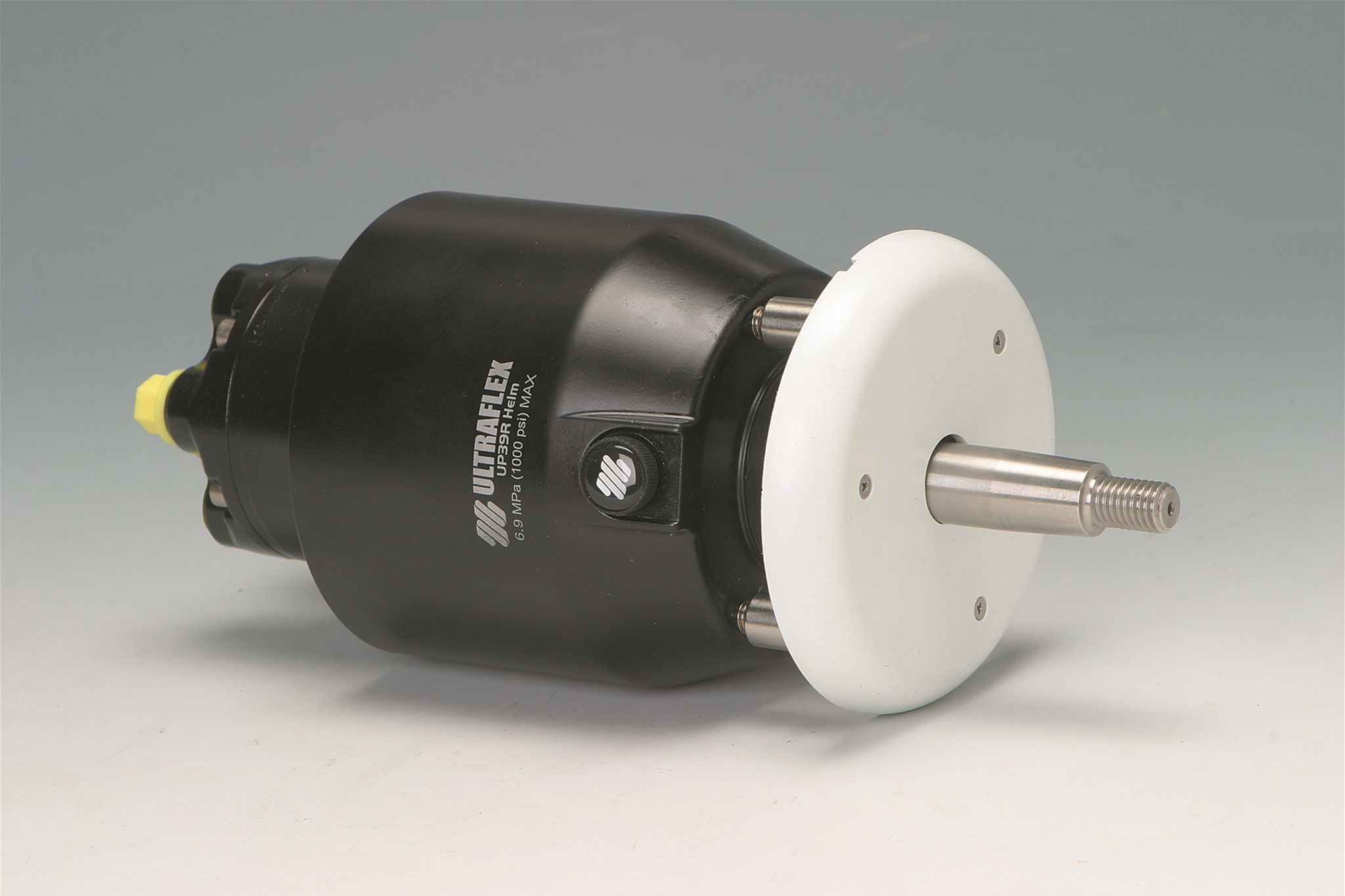

UP28R 42460 Z Rear Mount Helm Pump
Available in four different displacement sizes Compact design Ball bearing piston race Built-in lock valve for positive rudder lock Integral relief valve for over-pressure protection 3/4” tapered stainless steel shaft Easily accessible lock valve and shaft seal for replacement Cast iron cylinder rotor for greater durability and longer life 1/4” NPT fitting for 3/8” tube Includes 90° adjustable fittings for 3/8” tube and white bezel UP45 R pump is ideal for double cylinder applications UP45 pump is available also for inboard applications X68 (optional) - 40894 Z Chrome bezel KIT F (optional) - 39664 Y Remote fill adapter.
