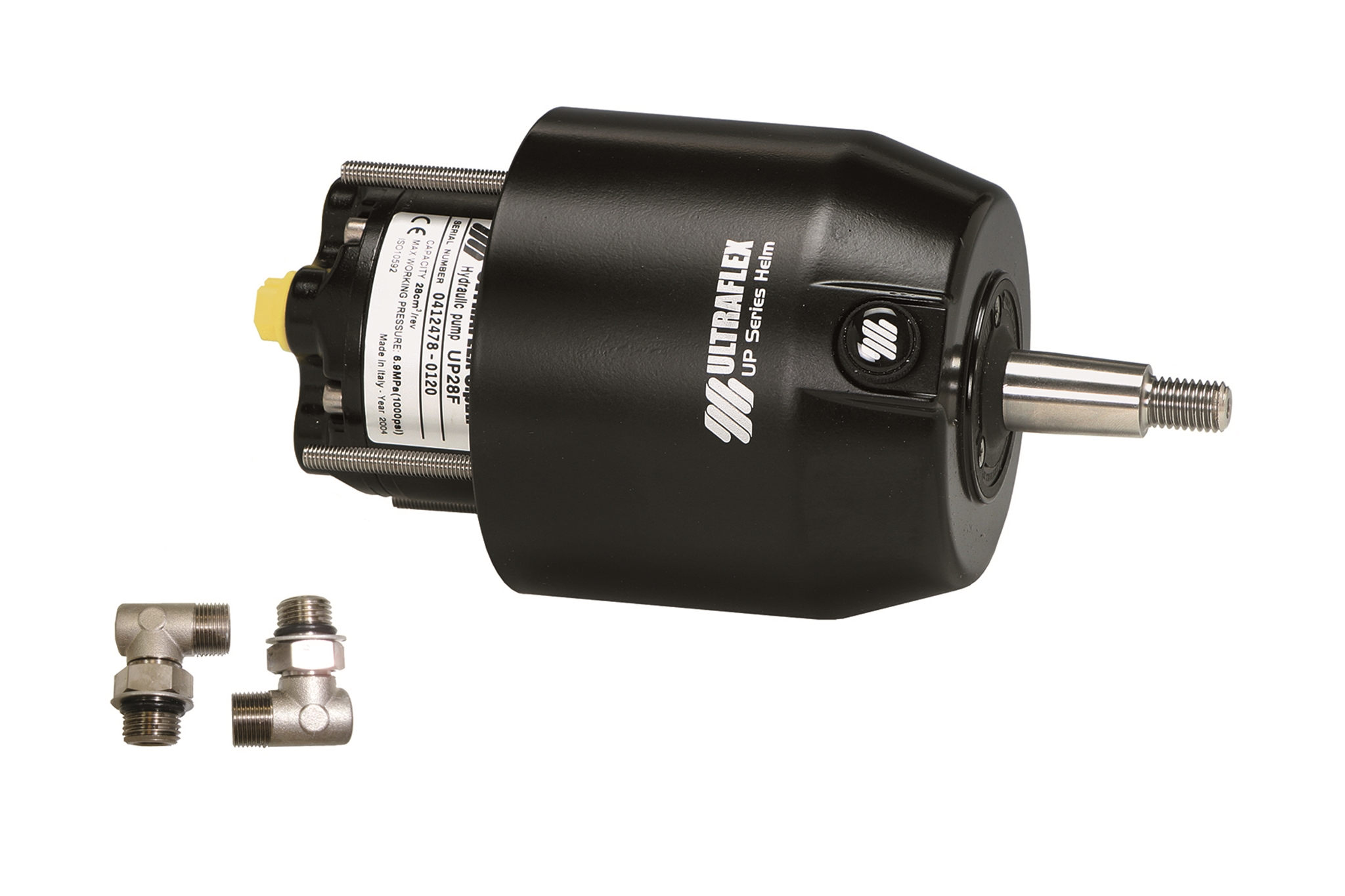

UP33 F 42456 J Helm Pump Features:

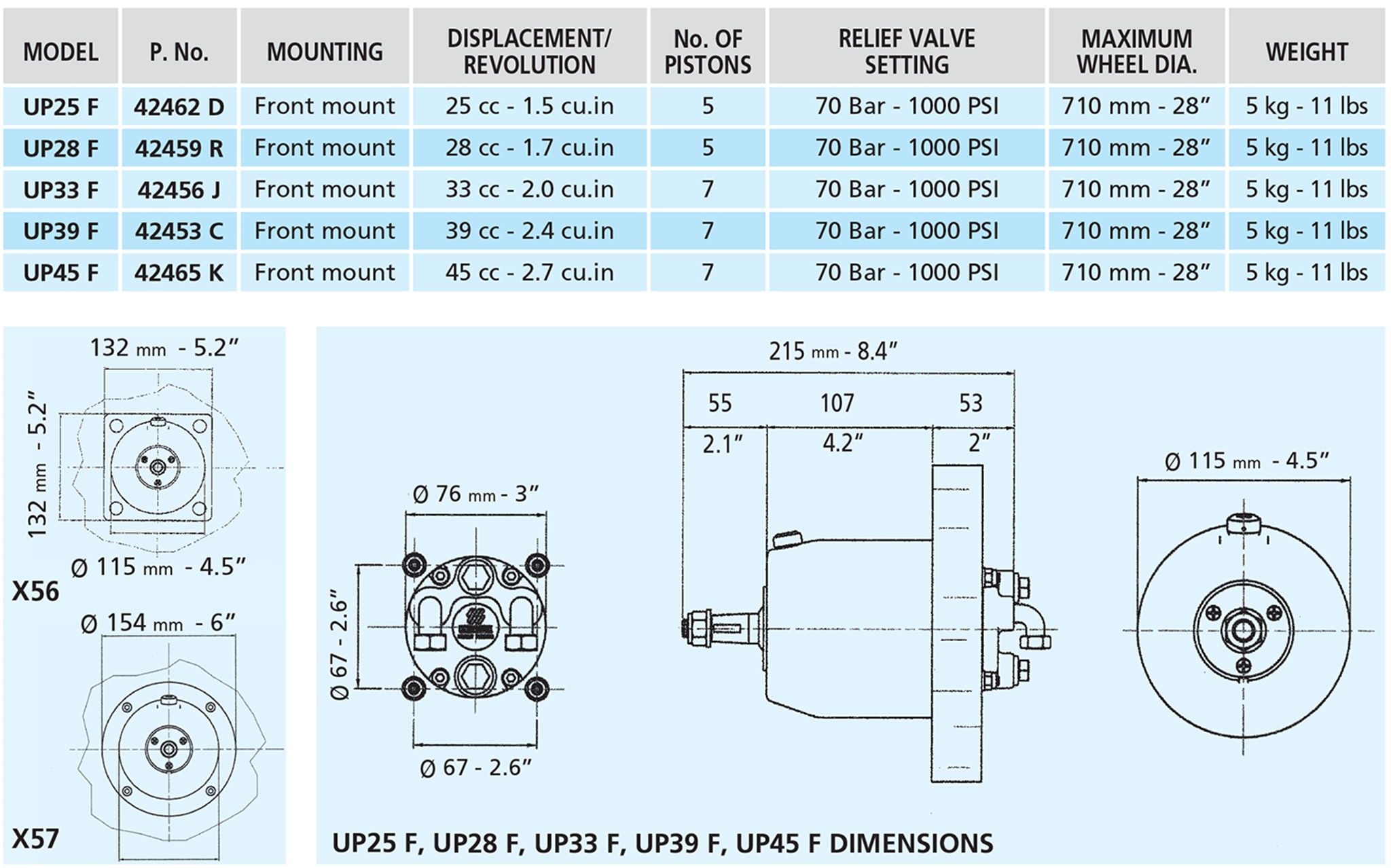

Features Available in five different displacement sizes Compact design Ball bearing piston race Built-in lock valve for positive rudder lock Integral relief valve for over-pressure protection 3/4” tapered stainless steel shaft Easily accessible lock valve and shaft seal for replacement Cast iron rotor for greater durability and longer life Includes 90° adjustable fittings for 3/8” tube UP45 F pump is ideal for double cylinder applications Direct “drop-in” replacement for competing helms X56 - 40198 C square flange or X57 - 39464 P round flange permit to install the pumps in an intermediate dashboard position.
